Place of Origin:
Zhengzhou,china
Brand Name:
Global Sunrise Lights
Certification:
CE,ROHS,VeraSol
Model Number:
SPS-10KW
Contact Us

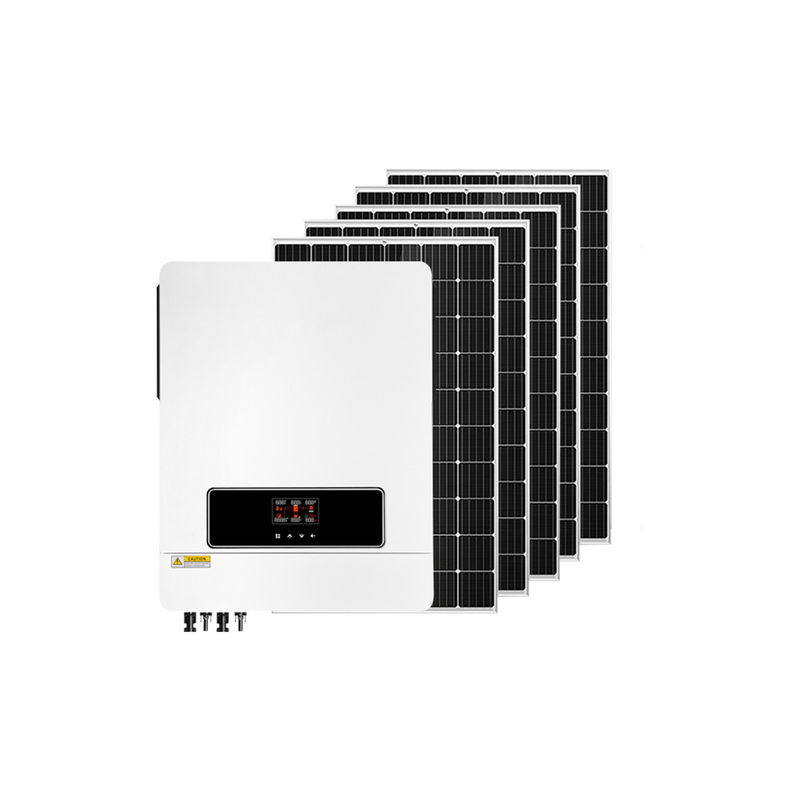

10KW MPPT Solar Panels Micro Inverter Solar Energy Kit On Grid Solar System WIFI&GPRS Available For IOS And Android
Product Introduction of the solar generator kit:
| Model | SPS-10KW |
| Maximum PV Input Power | 10000W |
| Rated Output Power | 10200W/10200VA |
| Maximum Solar Charging Current | 160A |
| Nominal DC Voltage/ Maximum DC Voltage | 360VDC/500VDC |
| Start-up Voltage/Initial Feeding Voltage | 90VCD/120VCD |
| Maximum DC Voltage | 90~450VDC |
| Number of MPPT Trackers/ Maximum Input Current | 1/27A |
| Nominal OutputVoltage | 200/230/240VAC |
| Output Voltage Range | 195.5~253VAC |
| Nominal Output Current | 44.3A |
| Power Factor | >0.99 |
| Feed-in Grid Frequency Range | 49~51Z±1Hz |
| Maximum Conversion Efficiency(DC/AC) | 98% |
| Full Load | 10200W |
| Maximum Main Load | 10200W |
| Maximum Second Load(battery mode) | 3400W |
| Main Load Cut Off Voltage | 44VDC |
Advantage/Selling points about the solar generator kit:
Over Temperature Protection
Short Circuit Protection
Low/over Voltage Protection
Over Load Protection
Battery Low/over Voltage Protection
Reverse Polarity Protection
FAQ of the solar generator kit:
Q 1. Can we check the quality in the production process?
A: Of course. You are always welcome to visit and inspect during the production process. If it's inconvenient for you to come over, we'll send you the real-time recorded video, so that you can buy goods without worry.
Q2. Are you capable of providing one-stop service?
A: Yes, from the moment you send your inquiry, we will follow up your order all the way to ensure that there are no mistakes until you receive the goods.
Q3. Can your inverter charge the refrigerator?
A:This depends on the power of the appliance. Generally, those below 500 watts can be charged.
Q4. How do we ensure that our information will not be seen by third parties?
A: We ensure that all your project documents are secure. We can sign confidentiality agreements with our customers.
Q 5. How many sets of this product can be purchased at least?
A: The minimum order quantity we can accept is 1 set, so that you can go back for testing.
Q 6. What are the advantages of your products?
A: The 12-month warranty can guarantee you worry free after sales.
Company profile about the Global Sunrise Lights Electrical Co.,ltd:
Global rising sun lighting company specializes in solar lighting, and solar products have been supplied for more than ten years; Excellent quality and professional service have won a good reputation all over the world; Now we provide a newly designed portable solar power generation system. Different from the traditional solar power generation, each bulb / lamp of this model has a battery, with completely independent power consumption and easy management; High / medium / low power mode can be controlled by push-button switch or remote control. The portable solar kit is specially designed for remote areas, houses far away from the power grid, community power failure or field camping, and provides temporary lighting solutions for garages, shacks, huts, etc.
